Details

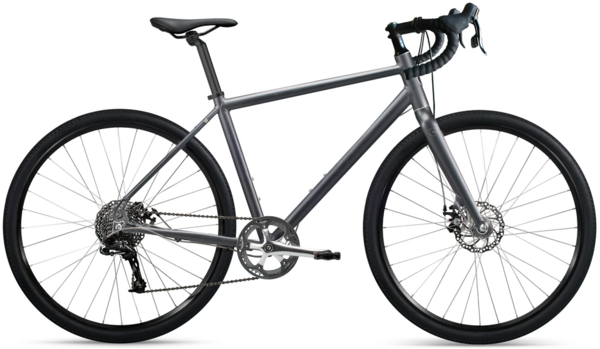

At the heart of the A:1R is the 6061 double butted aluminum frame and supple hydro-formed aluminum fork. Combine a custom short-reach drop handlebar, with a 0 degree set back seat post to shift the rider forward into an efficient, comfortable, all-day-long riding position. Roll's streamlined frames have been engineered to provide lateral stiffness for exceptional power transfer, combined with vertical compliance for a remarkably comfortable ride. Designed and engineered for the long haul in every detail, incorporating internally routed cables with end-to-end housing for clean, consistent, and low service shifting and braking.
Specs
Frame | Light weight, double butted 6061 aluminum, with internal cable routing. |
---|---|
Fork | Hydro-formed 6061 aluminum disc specific, with alloy steerer tube. |
Headset | VP alloy semi integrated with sealed cartridge bearings |
Wheels/Rims | 700c or 650b 32hole double wall anodized alloy. |
Hubs | Polished aluminum disc, sealed cartridge bearings, bolt on QR Skewers. |
Spokes | Stainless steel 14g spokes stainless steel nipples. |
Tires | 700x40mm Kenda K1152 Flintridge Dual Tread. |
Crankset | Forged 6061 aluminum polished crank arms, with alloy chain guard. |
Chainrings | 34 Tooth machined alloy, 3/32" |
Bottom Bracket | Alloy shell with sealed cartridge bearings, square taper steel axle. |
Chain | KMC X10-93 10 speed, silver. |
Rear Derailleur | SRAM X5 10 Speed 1x10 long cage |
Cassette/Rear Cogs | SRAM PG-1030 10 speed 11-36 PowerGlide II. |
Shifters | SRAM Apex 1x10 DoubleTap shift lever brake. |
Handlebars | 6061 Aluminum AR:1 Adventure Road bar, 440mm wide, 5.0° sweep |
Tape/Grips | EVA vibration-damping foam tape. |
Stem | 3D Forged aluminum alloy, +/- 7 degree rise |
Brake Levers | SRAM S-500 left brake lever. |
Brakes | Tektro MD-M300, mechanical disc brake, with 160mm TR-1 Rotor. |
Pedals | Nylon platform with sealed bearings. |
Saddle | Men's / women's Road Saddle, with steel rails. |
Seat Post | Aluminum alloy 30.9mm diameter with 12.9mm offset. |
* Subject to change without notice.
