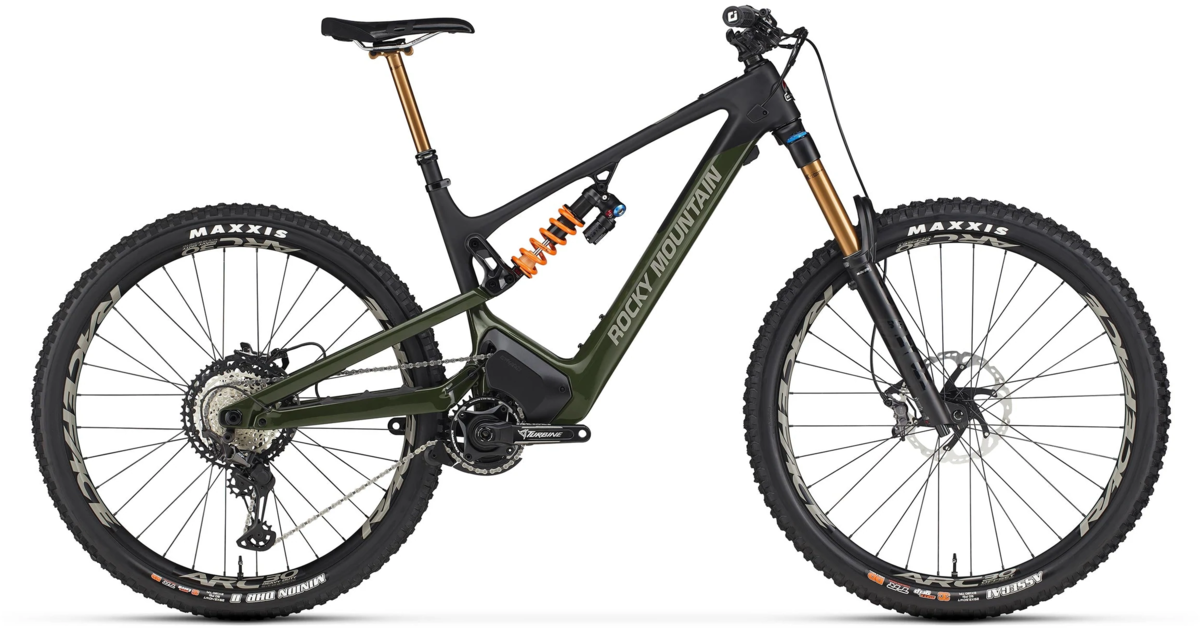

Rocky Mountain Altitude Powerplay Carbon 90 Rally Edition

Rocky Mountain Altitude Powerplay Carbon 90 Rally Edition
$10,649.00
Color:
Green/Carbon
Wheel Size:
29-inch
Please select options
Sorry, this item is currently not available.

Details

Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking.

The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability. So go ahead and smash down chutes, rail through corners, and then turn it up to ”Ludicrous” to get back up to the top faster than you ever thought possible.

Geo Chart

Geometry Chart:
SizeSmallMediumLargeX-Large
Ride-4 Position Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack
Top Tube Horizontal (mm) 587 612 639 673
Head Tube Angle 63.5 63.5 63.5 63.5
Head Tube Length (mm) 100 100 110 125
Seat Tube Angle 75.5 75.5 75.5 75.5
Seat Tube Length (mm) 380 420 445 480
Rear Centre (mm) 439 439 439 439
Bottom Bracket Drop (mm) 34 34 34 34
Reach (mm) 425 450 475 508
Stack (mm) 629 628 638 652
Standover Height (mm) 834 832 831 831
Wheelbase (mm) 1210 1237 1264 1301
Sizes:
SizeHeight (inches)Height (cm)
Small 5’2” - 5’7” 157.5 - 170cm
Medium 5’6” - 5’10” 165.5 - 177.5cm
Large 5’9” - 6'2” 175 - 188cm
X-Large 6’1” - 6'6" 185.5 - 198cm

Specs

Frame SMOOTHWALL™ Carbon. Integrated Display. Mid-High Pivot Smoothlink Suspension System. Press Fit BB. RIDE-4™ Adjustable Geometry + Suspension Rate. 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork Fox 38 Float EVOL GRIP2 Factory Series 170mm | 44mm Offset
Rear Shock Fox DHX2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm
Rims Race Face ARC HD 30 | 32H | Tubeless Ready - Tape | Valves Included
Hubs Front: Rocky Mountain Sealed Boost 15mm
Rear: DT Swiss Hybrid 350 Boost 148mm | 24T Star-Ratchet
Spokes Front: DT Swiss Champion 2.0
Rear: DT Swiss Alpine 2.3/2.0
Tires Front: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready
Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready | Cushcore Pro Tire Insert
Crankset Race Face Turbine Cinch 34T | 30mm Spindle
Shifters Shimano XT
Rear Derailleur Shimano XT
Chain Shimano M8100
Brakes Shimano XT Trail 4 Piston | Metal Pads
Rotors Front: Shimano RT86 203mm
Rear: Shimano RT86 203mm
Handlebars Race Face Turbine R | 780mm Width | 35mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp
Tape/Grips ODI Elite Pro Lock On
Stem Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40m
Headset FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seatpost Fox Transfer Factory Series 30.9mm
Saddle WTB Volt Race 142
Accessories & Extras Remote: Rocky Mountain Micro Remote
Motor Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 700w Peak Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency Classe 1 eMTB System | Designed in Canada
Battery 720 Wh Removable Integrated Li-Ion
Controller/Display Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

* Subject to change without notice.

Part Numbers

Option UPC MPN
Green/Carbon / Small / 29-inch 770416420043 B0200SM92CA
Green/Carbon / Medium / 29-inch 770416407266 B0200MD92CA
Green/Carbon / Large / 29-inch 770416407365 B0200LG92CA
Green/Carbon / X-Large / 29-inch 770416407464 B0200XL92CA
