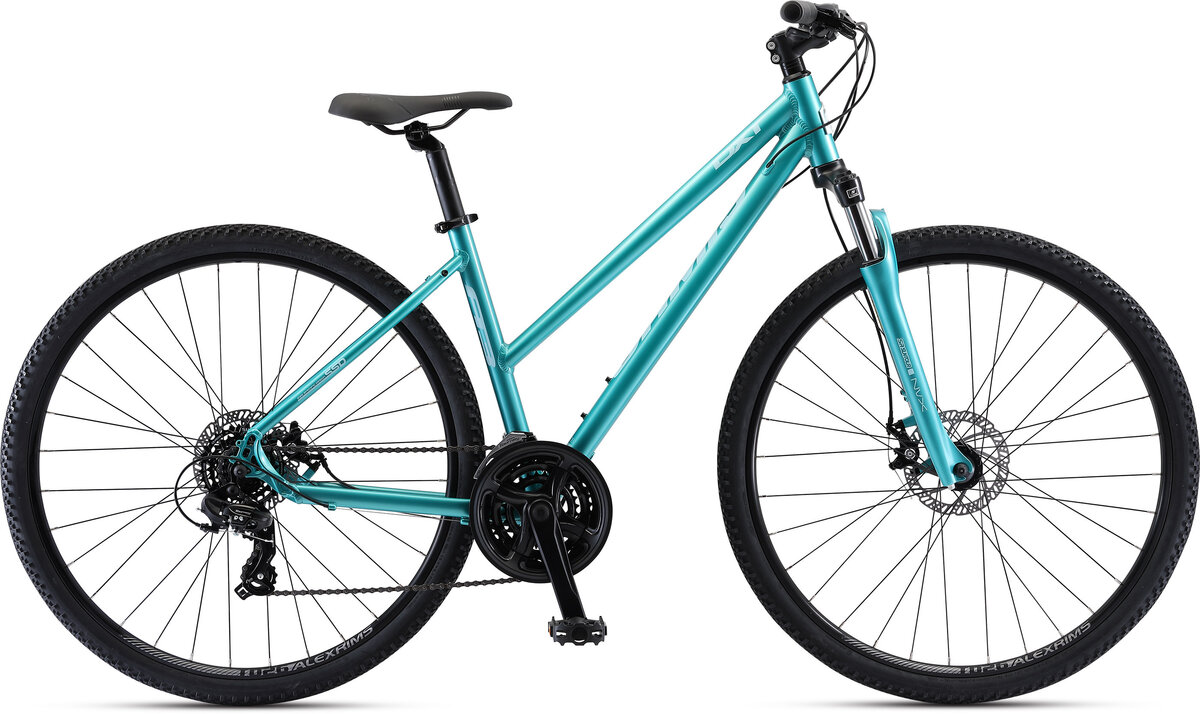

Jamis DXT A3 Step-Over
$659.95
Details
The dual-sport DXTs are pumped-up, go-anywhere/do-anything versions of a fitness bike, with more gearing range to take on steeper hills and tougher terrain, as well as wider tires with a trail-capable tread for access to more riding areas, both paved and packed. Disc brakes and suspension forks add real off-road exploration and off-pavement adventure.
Specs
| Frame | Size Specific Design 6061 aluminum with fast back rear triangle, 1 1/8" head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets |
|---|---|
| Fork | SR/Suntour NVX-DS, aluminum lowers, coil spring, 28mm stanchions, 1-1/8" steerer, 75mm travel |
| Headset | Internal Cup, threadless, 1 1/8" |
| Rims/Wheels | Alex TD26 disc specific double wall alloy rims, 32H, alloy disc hubs with QR and 14g stainless steel spokes |
| Tires | CST Dual Sport Tire, 700 x 42c |
| Crankset | Forged alloy crank with chain guard, 48/38/28T, 170mm |
| Bottom Bracket | VP sealed cartridge, 68 x 122.5mm |
| Chain | KMC Z7 |
| Rear Derailleur | Shimano TY300 rear and TY510 top swing front |
| Cassette/Rear Cogs | Shimano CS-HG200, 7-speed, 12-32T |
| Shifters | Shimano Rapid Fire SL-EF500, 2-speed |
| Handlebars | Jamis Riser bar, double-butted aluminum, 25.4 x 10° sweep x 20mm rise x 640mm (14-18"), 660mm (20") |
| Tape/Grips | ERGO Type Grip |
| Stem | Jamis Trekking, 3D forged alloy, 15° rise, Length-60mm |
| Brakes | Tektro MD-280 cable-actuated disc brakes with 160mm stainless 6-bolt rotors and Shimano EF41 levers |
| Pedals | Platform style |
| Saddle | NEW Jamis Touring Femme with SL cover |
| Seat Post | Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Ano Seafoam / 14-inch | 845436081175 | 03-3395BL | 210000013751 |
| Ano Seafoam / 18-inch | 845436081182 | 03-3396BL | 210000013752 |
| Ano Seafoam / 20-inch | 845436081199 | 03-3397BL |
