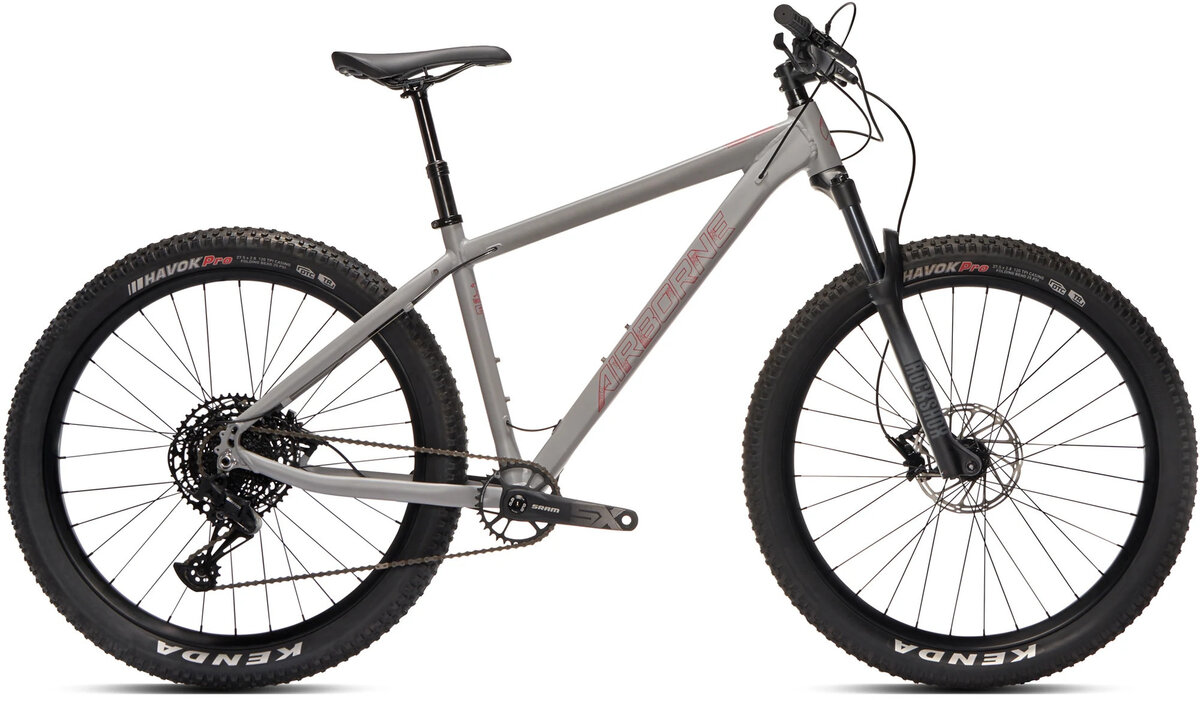

Airborne Griffin 27.5+

Airborne Griffin 27.5+
Size: Select size
Please select options Unavailable


The most versatile bike in the Airborne lineup, the Griffin 27.5+ rolls up, down, and over anything in its path. Never mind the husky profile, this bike is light, nimble, and easy to ride, anywhere you want to explore. A SRAM Eagle 1x12 drivetrain simply transfers the power to 27.5 x 2.8” tires that keeps you afloat in the soft stuff and tracking through the turns. The frameset features the same great 6061 aluminum construction as the rest of the Airborne frames, it’s just a little bigger and wider in the rear to accommodate the plus-sized tires. A Rockshox Recon Silver fork provides an ample 120mm of suspension travel, and thru-axles (front and rear) keep your wheels firmly in place and makes it easy to take them on and off. The Airborne Griffin 27.5+ is ready for anything — It’s like a monster-sized BMX bike, and it’s an absolute blast to ride.


Frame Hydroformed 6061 series aluminum with tapered head tube, internal cable routing, internal dropper post cable routing, and rack mounts
Fork Rockshox FS Recon Silver RL Stealth Boost, 120mm-travel, 15x110mm axle, 1.5” taper
Headset 1-1/8” to 1-1/2” tapered
Rims/Wheels Airborne, 42mm external width, 35mm internal width, 32-hole, tubeless ready
Hubs Airborne with Boost 148x12mm thru-axle
Tires Kenda Havok Pro, 27.5 x 2.8”, 120tpi, tubeless ready
Crankset 170mm SRAM SX DUB Boost 148 Eagle with 32t X-Sync steel chainring
Bottom Bracket SRAM DUB pressfit BB92
Chain SRAM SX Eagle 12-speed
Rear Derailleur SRAM SX Eagle 12-speed
Cassette/Rear Cogs SRAM PG-1150 11-50t 12-speed
Shifters SRAM SX Eagle 12-speed trigger shift
Handlebars Airborne alloy riser, 31.8mm clamping area, 740mm width, 35mm rise, 6º backsweep
Tape/Grips Flangeless lock-on, 130mm length
Stem Airborne alloy front load, +/-7º rise, 60mm length
Brake Levers SRAM Level hydraulic disc
Brakes SRAM Centerline, 180mm
Saddle Velo
Seat Post Tranz-X cable actuated alloy dropper, 80mm-travel, 31.6mm diameter

* Subject to change without notice.

Part Numbers

Option MPN
Small BC86886-01
Medium BC86886-02
Large BC86886-03
